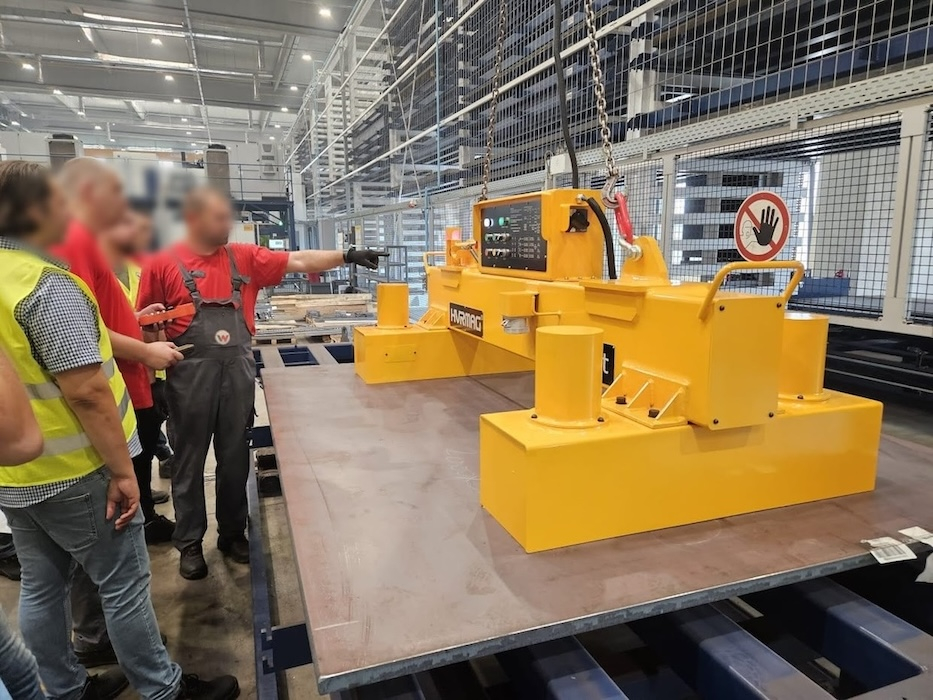

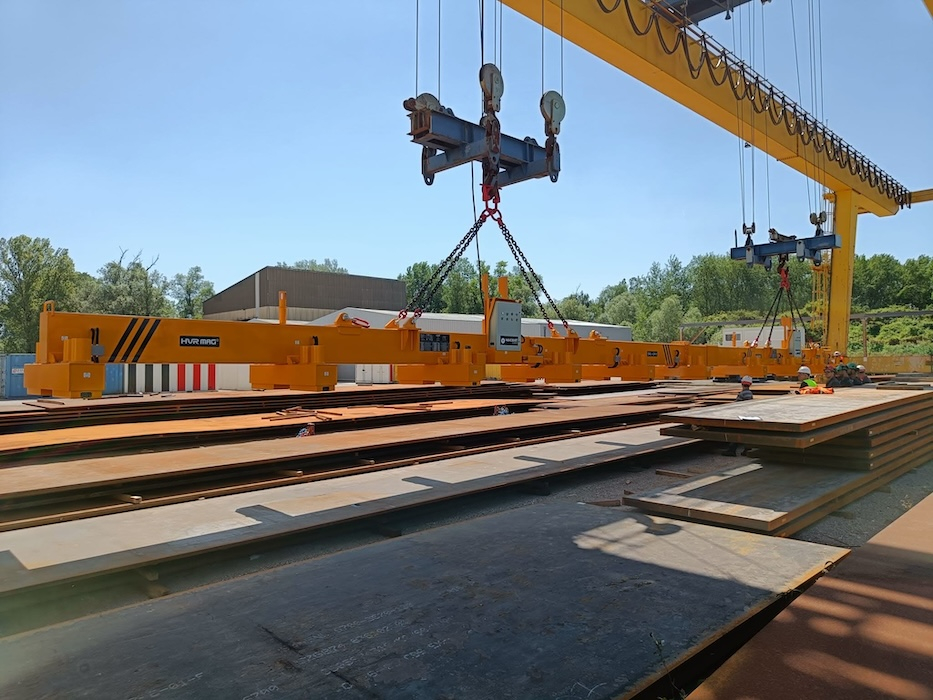

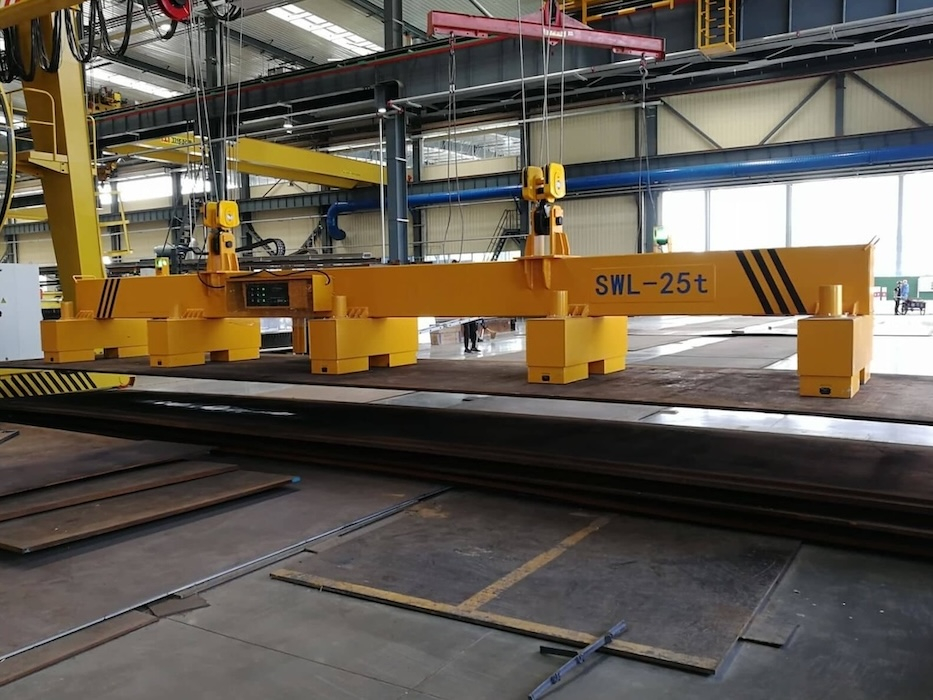

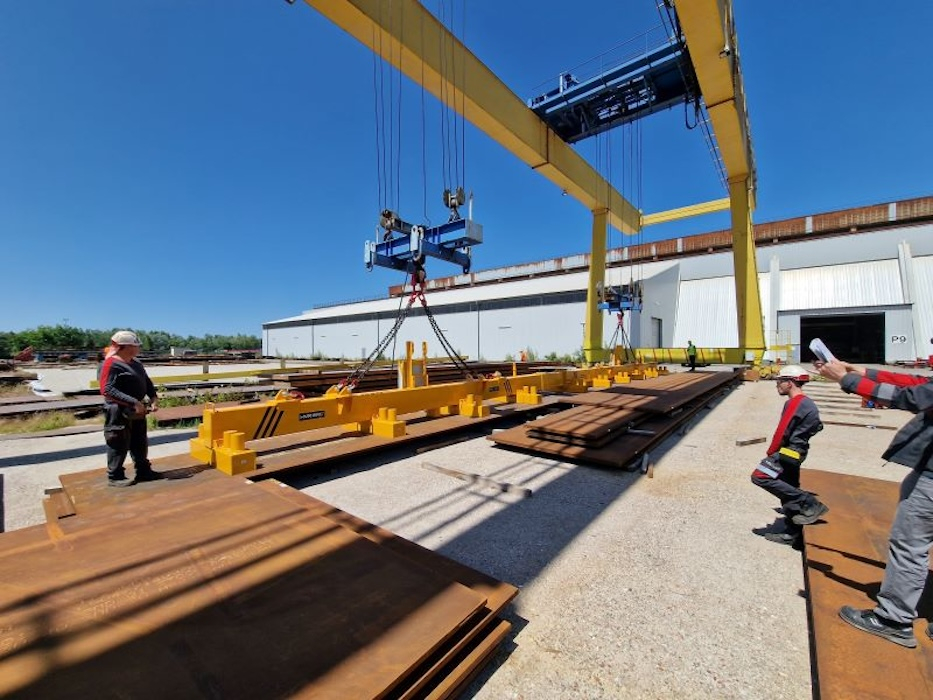

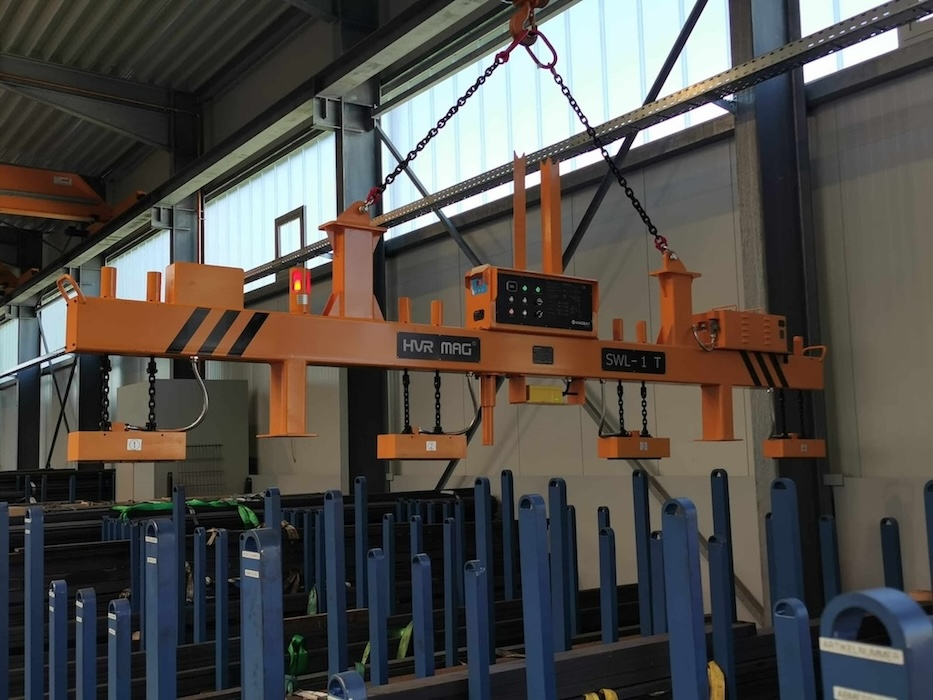

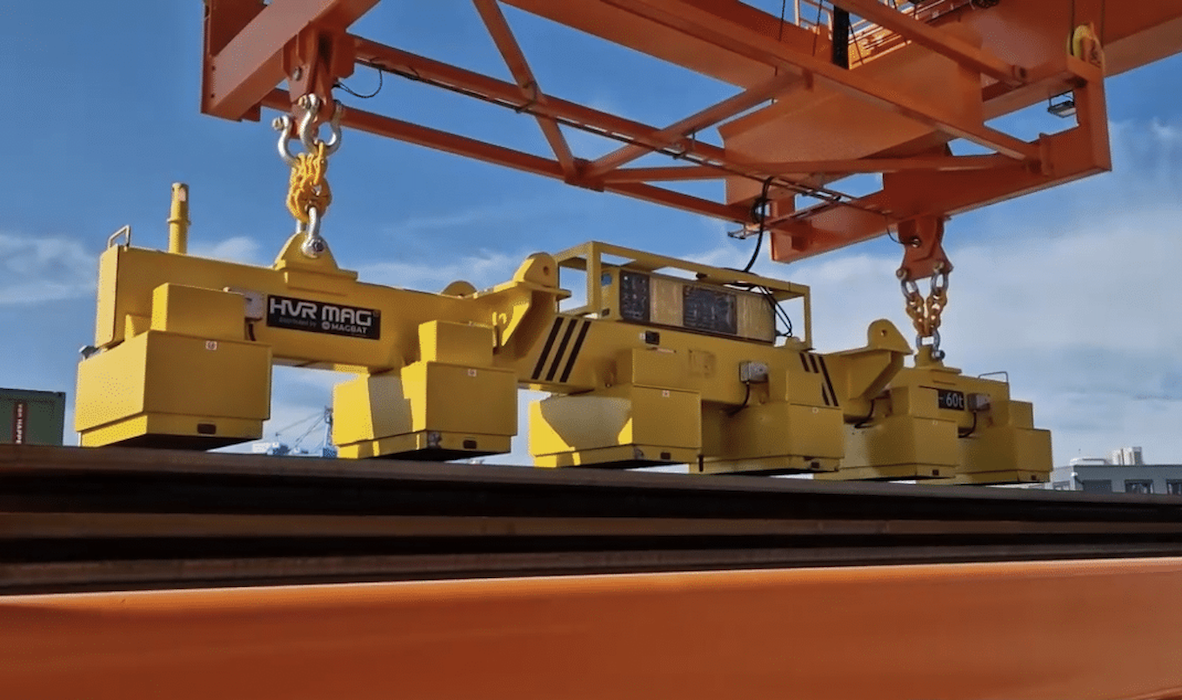

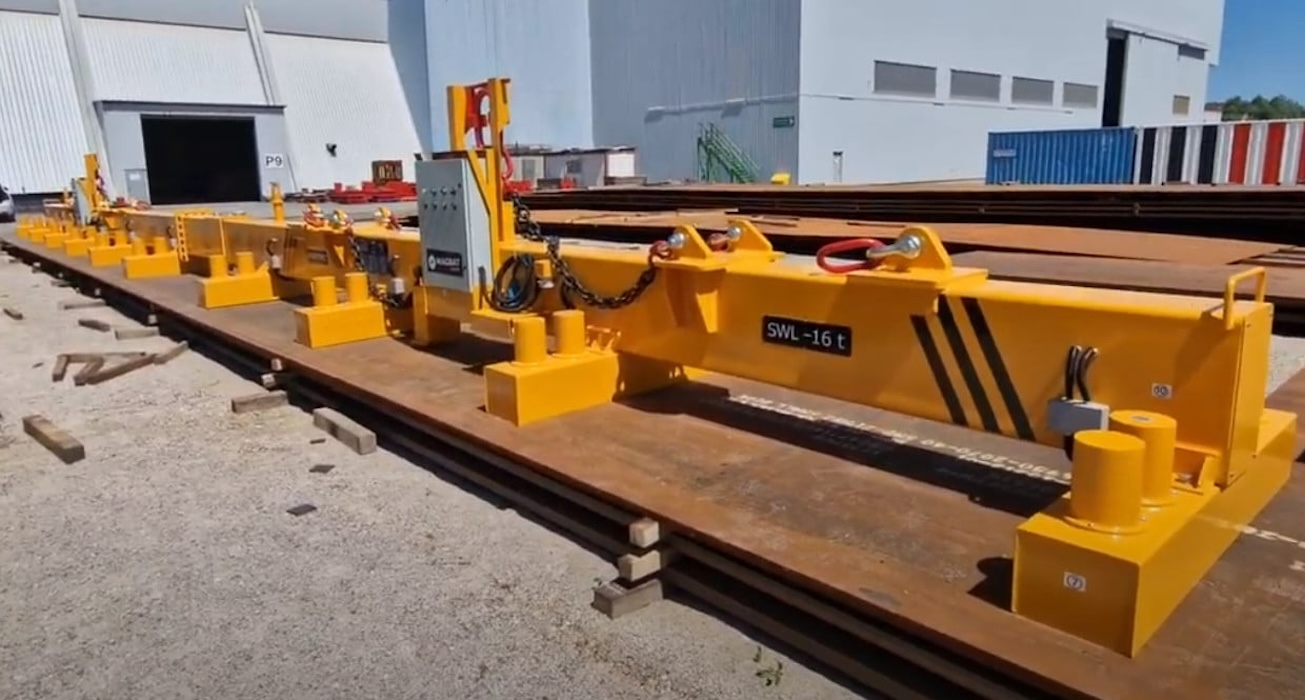

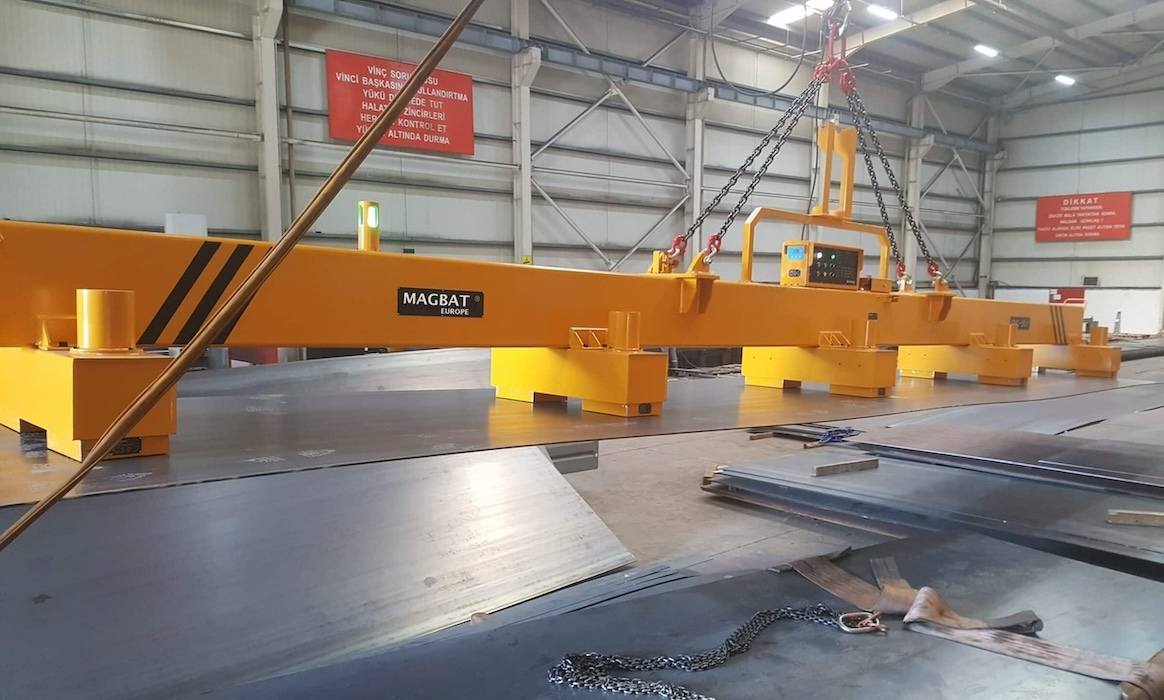

Magnetic traverse with fixed magnet spacing type HM1
Magnetic trapeze type HM1 is designed for lifting and transporting single sheets with a minimum thickness of 5 mm. In standard versions, the traverse is manufactured for sheet metal up to 16,000 mm in length. In addition to the standardised solutions, traverses designed according to individual customer needs are available.
Innovative solutions using electro-permanent belt magnets provide a reliable and safe solution for sheet metal transport.
When transporting large sheets using standard tie-downs such as handling hooks or handling clamps, sheet metal often deflects or deforms. Magnetic traverses allow the sheet to be gripped evenly over a larger area, eliminating sheet deflection.
Benefits:
- Easy removal of sheets from the bundle without the need for stacking
- High safety - magnets are independent of the power supply during load transfer
- Low maintenance
Technical specifications:
- Welded S355 structural steel beam
- The traverse is supplied complete with chain ties for hanging on the crane hook.
- Flexibly suspended electro permanent magnet modules for perfect surface adaptation to the steel plate.
- Controlled by digital buttons on the control unit or by the standard supplied radio remote control.
- Highly advanced SPC system to control system performance
- Depending on the dimensions of the steel plate, the appropriate number of magnetic modules can be selected using a four-position switch.
- The PICK-UP cycle allows safe lifting of ONE plate.
- Depending on the thickness of the plate, the corresponding magnetic field depth in the PICK-UP regime can be selected using a four-position switch.
- Load release detection system to prevent accidental demagnetization during transport
| Model | SWL | Min. Thickness | Width | Length | Qty | Weight |
| (kg) | (mm) | min - max | min - max | EPM Modules | (kg) | |
| (mm) | (mm) | |||||
| HM1-03-025 | 2,5 | 3 | 500 - 2.000 | 500 - 3.000 | 4 | 450 |
| HM1-04-040 | 4 | 5 | 500 - 3.200 | 250 - 4.000 | 4 | 450 |
| HM1-06-030 | 3 | 5 | 500 - 3200 | 500 - 6.000 | 6 | 900 |
| HM1-06-060 | 6 | 5 | 500 - 3.200 | 500 - 6.000 | 6 | 1000 |
| HM1-06-090 | 9 | 5 | 500 - 3.200 | 500 - 6.000 | 6 | 1100 |
| HM1-06-240 | 24 | 8 | 580 - 3.200 | 500 - 6.000 | 6 | 1600 |
| HM1-09-050 | 5 | 5 | 500 - 3.200 | 2350 - 9000 | 8 | 1200 |
| HM1-09-080 | 8 | 5 | 500 - 3.200 | 2350 - 9000 | 8 | 1300 |
| HM1-09-100 | 10 | 5 | 500 - 3.200 | 2350 - 9000 | 8 | 1400 |
| HM1-09-120 | 12 | 5 | 500 - 3.200 | 2350 - 9000 | 8 | 1500 |
