Magnetic traverse with electropermanent magnetic beam for thin steel sheets type HM3

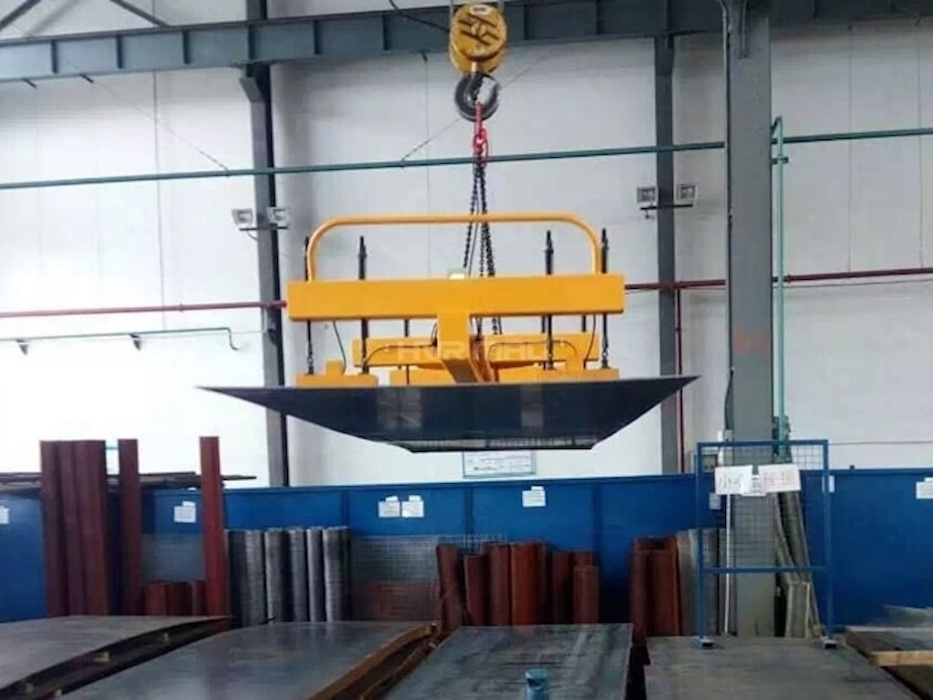

Magnetic trapeze with electro permanent magnetic beam type HM3 is designed for lifting and transporting single sheets with minimum thickness of 3 mm. In standard versions, the traverse is manufactured for sheet metal up to 16,000 mm in length. In addition to the standardised solutions, traverses designed according to individual customer needs are available.

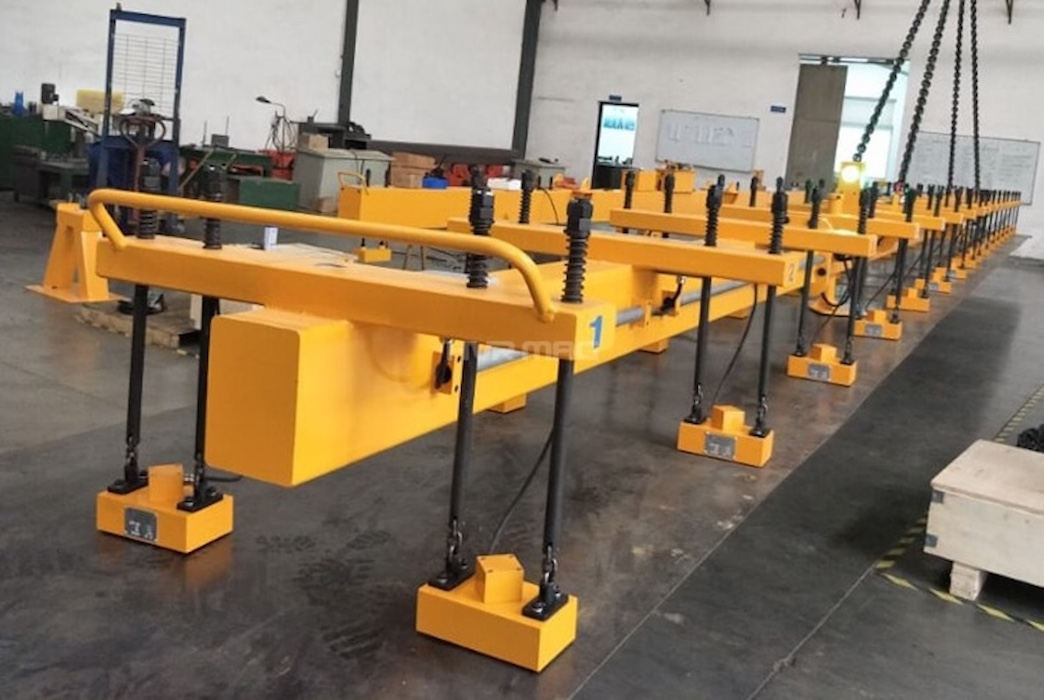

The innovative solution of these magnetic traverses is that they consist of several electro permanent magnetic modules that are flexibly suspended, allowing a perfect adaptation to the steel plate.

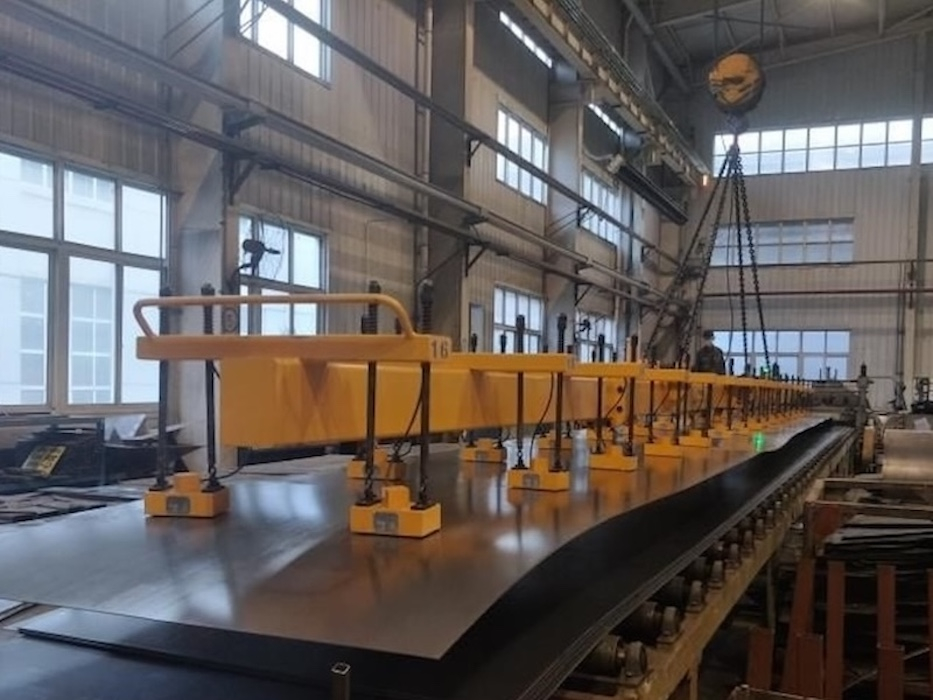

When transporting large plates using standard tie-downs such as handling hooks or handling clamps, the plates are often deflected or deformed. Magnetic traverses allow the sheet metal to be gripped evenly over a larger area, eliminating sheet metal deflection.
Benefits:
- Easy removal of sheets from the bundle without the need for stacking
- Electronic controls equipped with a switch to activate and deactivate magnetic modules based on sheet metal dimensions
- Integrated digital buttons or radio remote control allow convenient control of the lifting operation
Technical specifications:
- Welded S355 structural steel beam
- The traverse is supplied complete with chain ties for hanging on the crane hook.
- Flexibly suspended electro permanent magnetic modules for perfect surface adaptation to the steel plate.
- Controlled by digital buttons on the control unit or by the standard supplied radio remote control.
- Highly advanced SPC system to control system performance
- Depending on the dimensions of the steel plate, the appropriate number of magnetic modules can be selected using a four-position switch.
- The PICK-UP cycle allows safe lifting of ONE plate.
- Load release detection system to prevent accidental demagnetization during transport
| Model | SWL | Min. Thickness | Width | Length | Qty | Weight |
| (kg) | (mm) | min - max | min - max | EPM Modules | (kg) | |
| (mm) | (mm) | |||||
| HM3-03-010 | 1.000 | 3 | 1.000 - 2.500 | 500 - 3.000 | 6 | 550 |
| HM3-06-020 | 2.000 | 3 | 1.000 - 2.500 | 1.000 - 6.000 | 12 | 700 |
| HM3-09-030 | 3.000 | 3 | 1.000 - 2.500 | 1.000 - 9.000 | 18 | 1.000 |
| HM3-12-040 | 4.000 | 3 | 1.000 - 2.500 | 1.000 - 12.000 | 24 | 1.300 |
