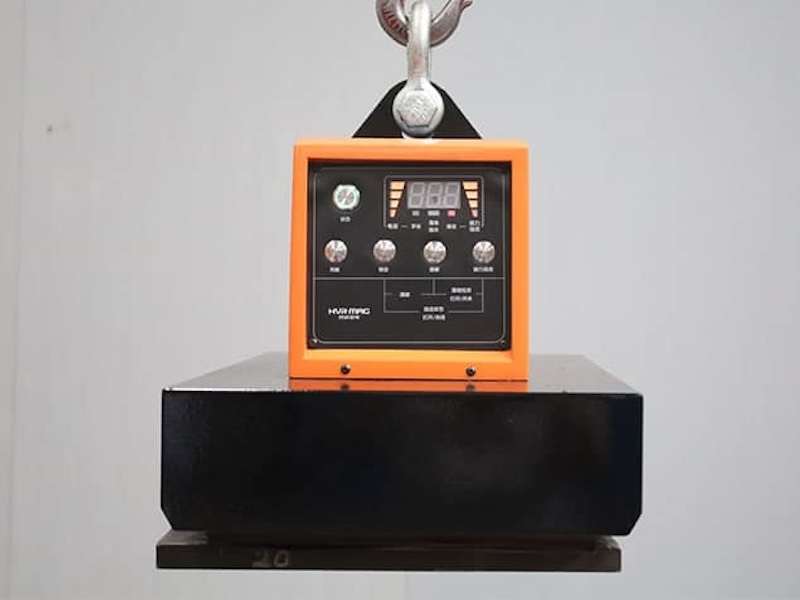

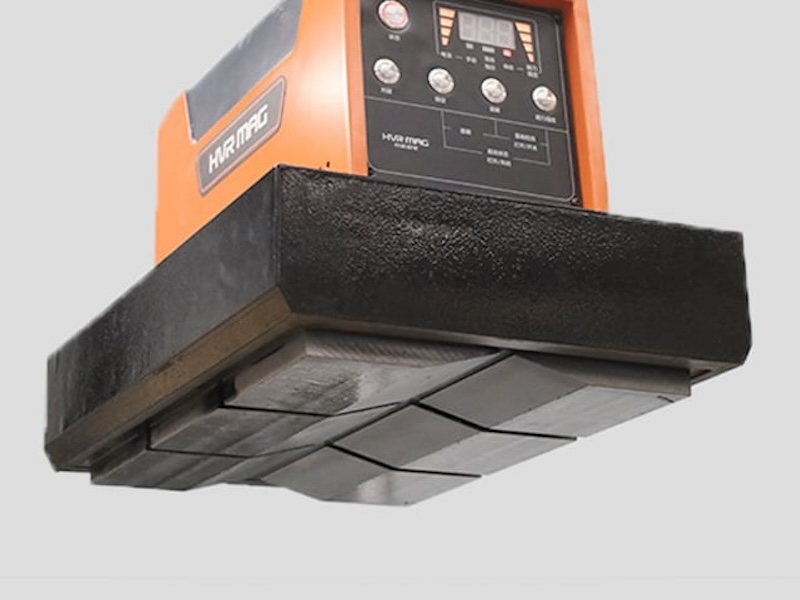

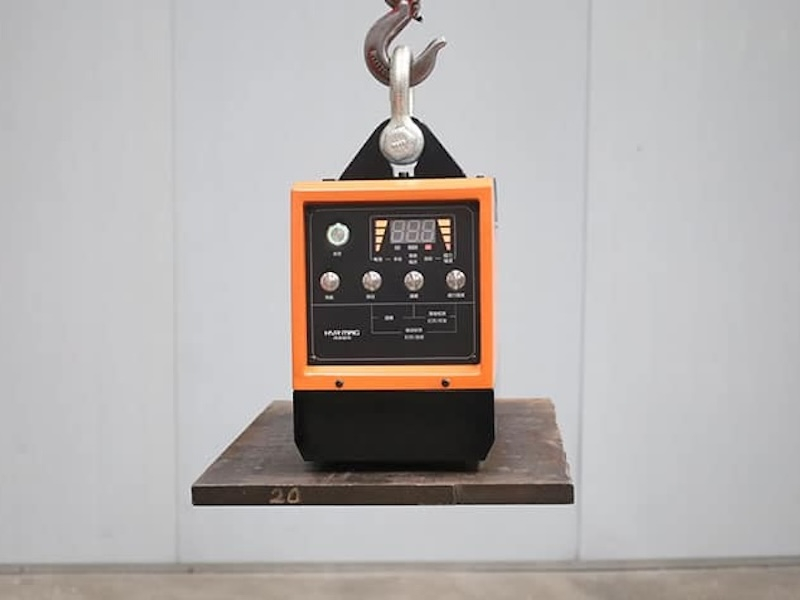

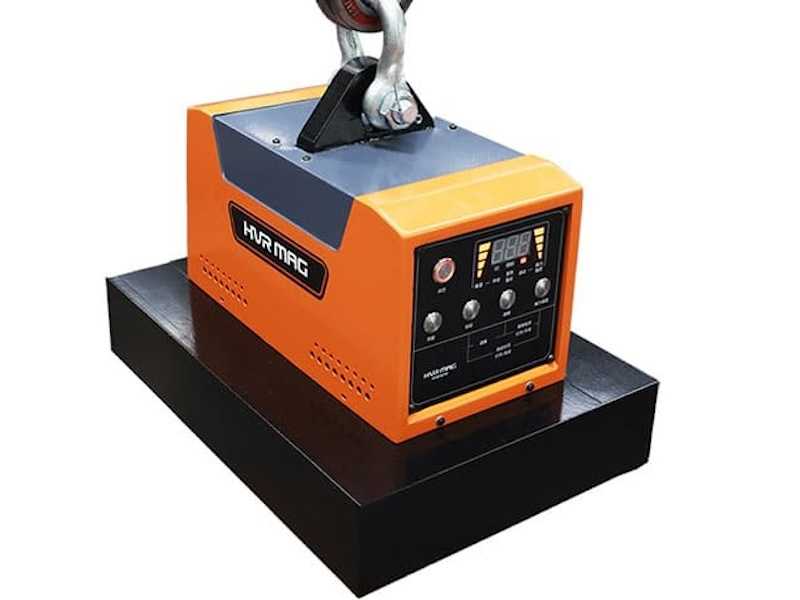

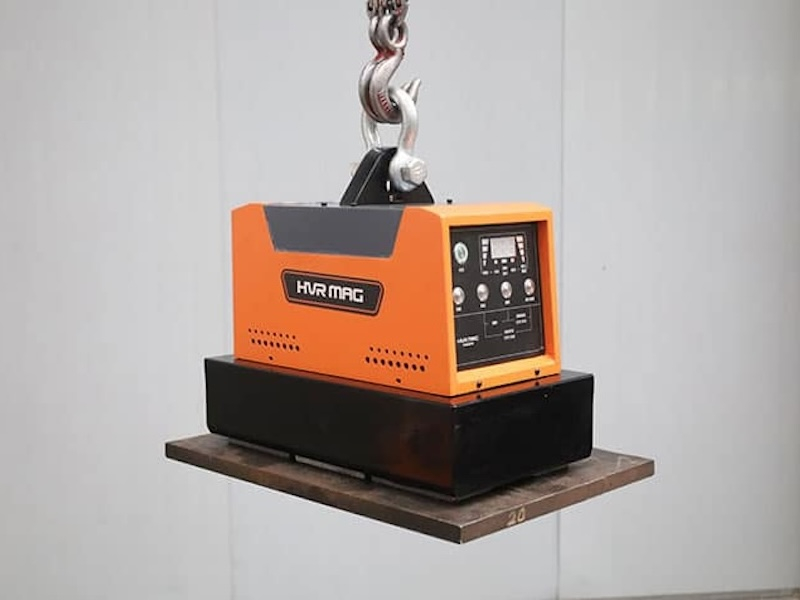

Electro permanent lifting Magnet with Battery Supply - HBEP
Electro permanent lifting magnet is designed for safe and quick lifting of flat loads and loads with a circular cross-section. Extremely versatile as no electrical connection is required apart from charging. The magnet comes with a standard battery with a capacity for approximately 1000 magnetization and demagnetization cycles. Battery power is only used during MAG / DEMAG cycles for approximately 1 second.
The safety hinge prevents any accidental maneuver. The MAG / DEMAG function can only be activated after the hinge is unloaded. The battery can be charged by connecting the supplied cable to a 220 V / 50 Hz socket.
The company Concept Machinery s.r.o. is the representative of MAGBAT Europe for the Czech and Slovak Republic.
Electro-permanent magnets guarantee absolute safety even in the event of a power failure. They do not require any backup batteries. The load remains clamped by the magnet indefinitely without any change in clamping force. In addition, these systems are energy-saving, as they only require power during the switching of MAG / DEMAG cycles - i.e. approx. 1s.
The purpose of the device:
- handling of sheets, steel blocks, slabs logs

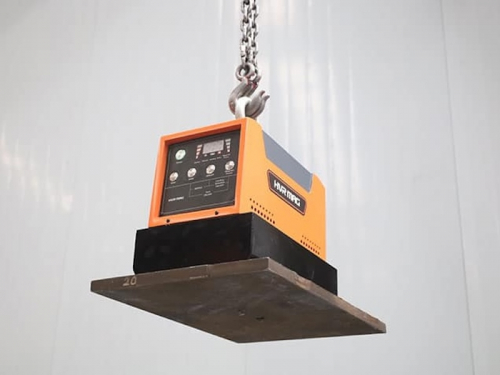

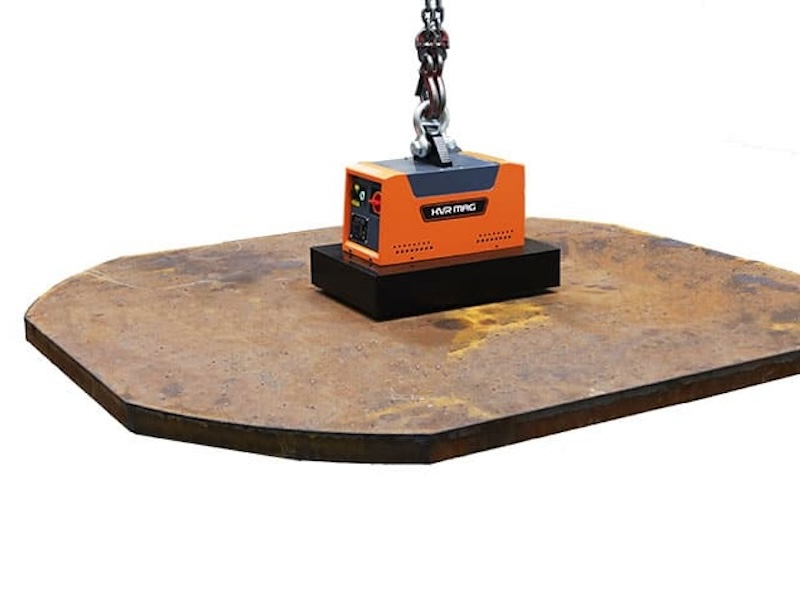

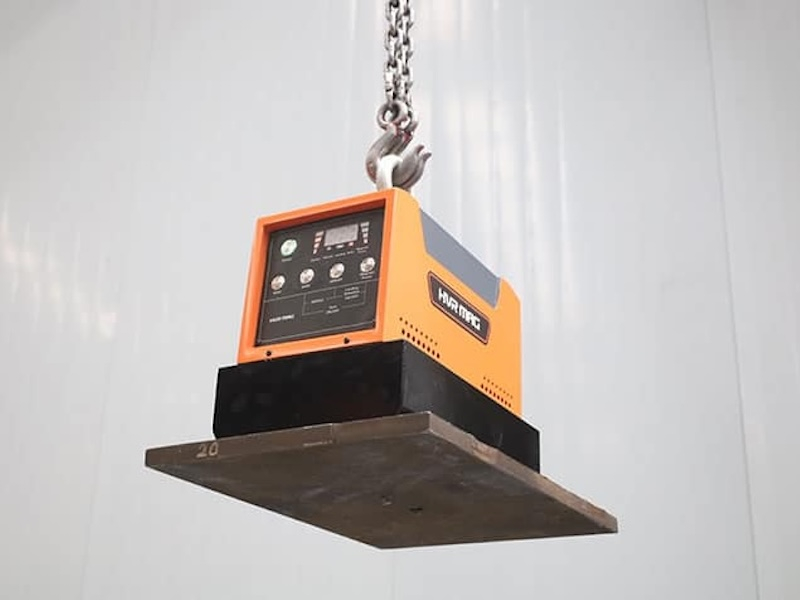

- lifting sheets, steel blocks, slabs, logs
- transport of sheets, steel blocks, slabs, logs
Technical specifications:
- 6 types with a load capacity of 500 - 5000 kg
- Recharge in about 7-9 hours
- Minimum thickness: 4 mm
- Safety factor: 3:1
- Lithium batteries with high autonomy

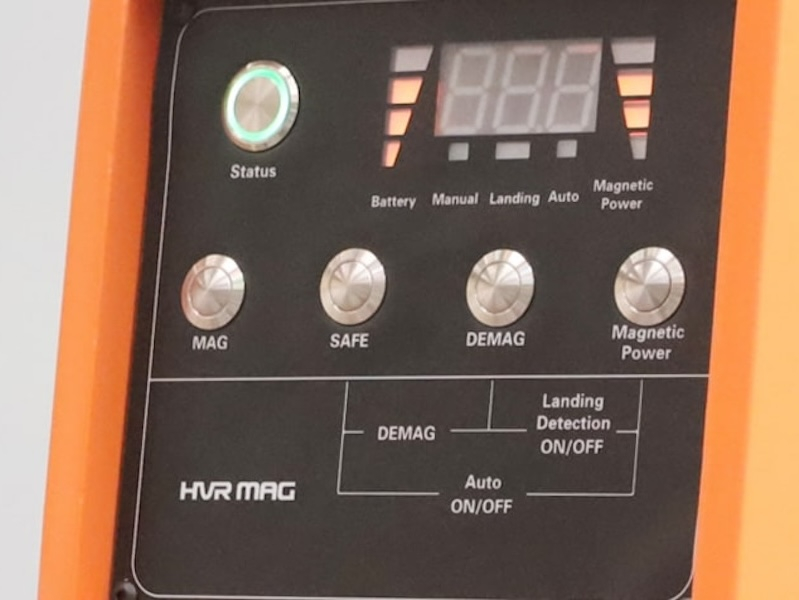

- Manual or automatic mode
- 4-levels of force in PICK-UP mode to lift 1 sheet from the bundle
- Safety sensor against unintentional release of the load during transport
| Model | SWL flat | SWL round | Min. Thickness | Dimensions (LxWxH) | Autonomy | Weight |
| (kg) | (kg) | (mm) | (mm) | (cykles) | (kg) | |
| HBEP 005 | 500 | 250 | 4 | 370x190x382 | 1100 | 51 |
| HBEP 010 | 1000 | 500 | 6 | 370x240x402 | 1100 | 73 |
| HBEP 015 | 1500 | 750 | 6 | 426x240x417 | 1100 | 88 |
| HBEP 020 | 2000 | 1000 | 8 | 470x330x404 | 1100 | 118 |
| HBEP 030 | 3000 | 1500 | 10 | 638x345x427 | 900 | 185 |
| HBEP 050 | 5000 | 2500 | 20 | 1332x547x530 | 300 | 502 |
